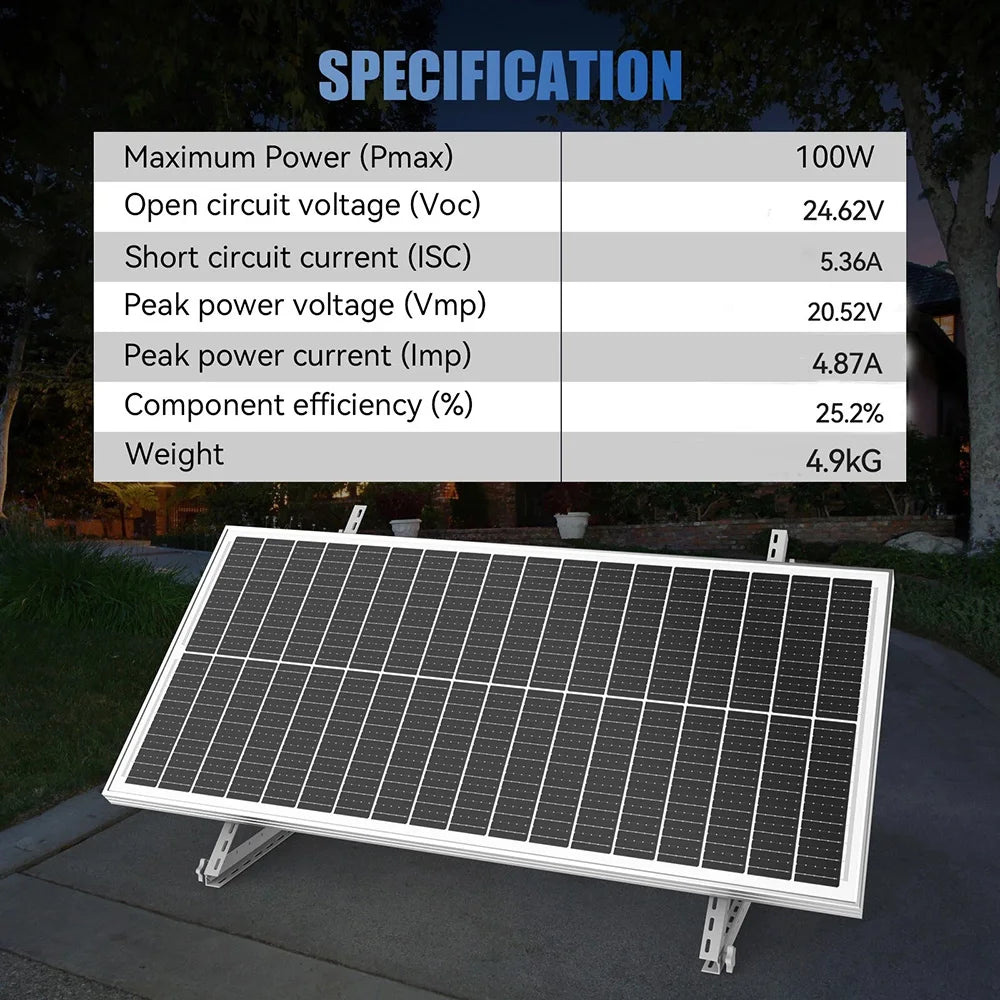

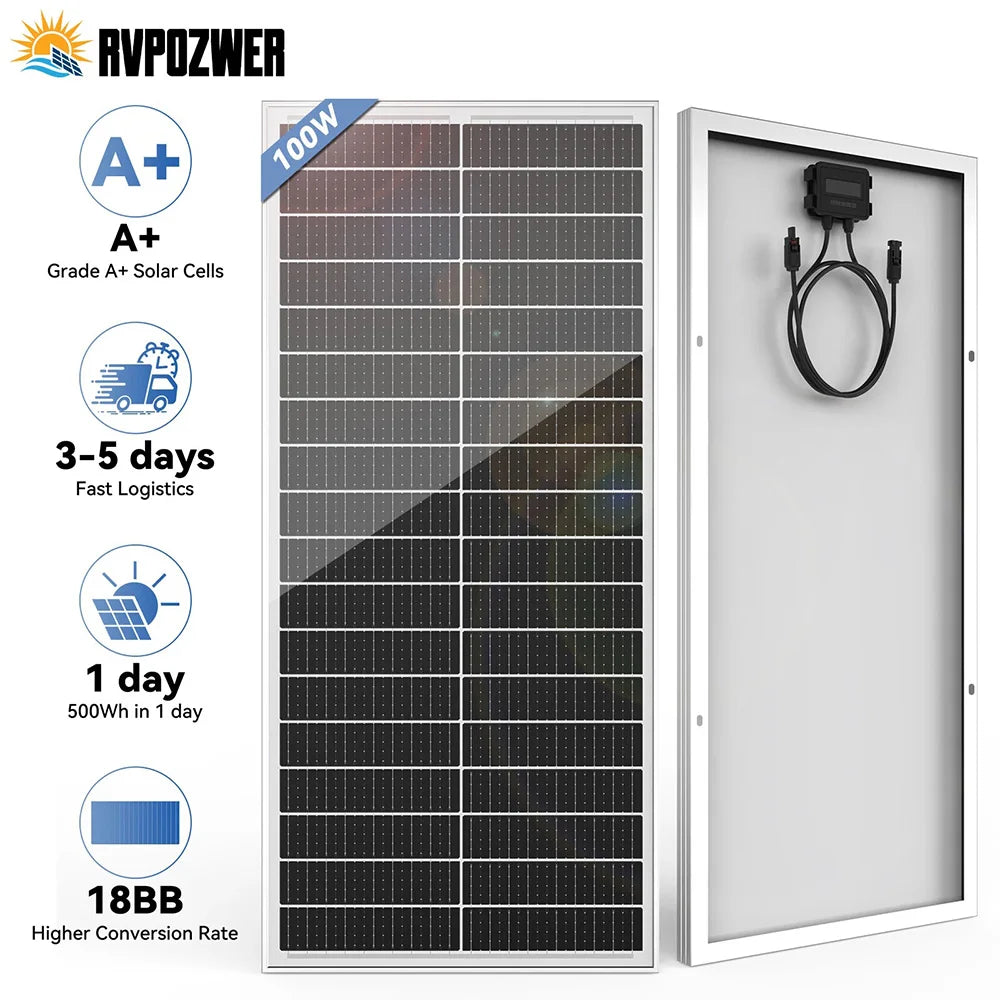

Product Datas:

Maximum Power(Pmax): 100W/Pcs

Open circuit voltage(Voc): 24.62V

Short circuit current(IsC): 5.36A

Peakpowervoltage(Vmp): 20.52V

Peak power current (Imp): 4.87A

Component efficiency(%): 25.2%

Weight: 4.9kg

Voc and Isc Tolerance:±5%

Maximum System Voltage: 1500V

Maximum Series Fuse Rating: 25A

Operating Temperature: -40°C~85°C

Protection Class: ClassII

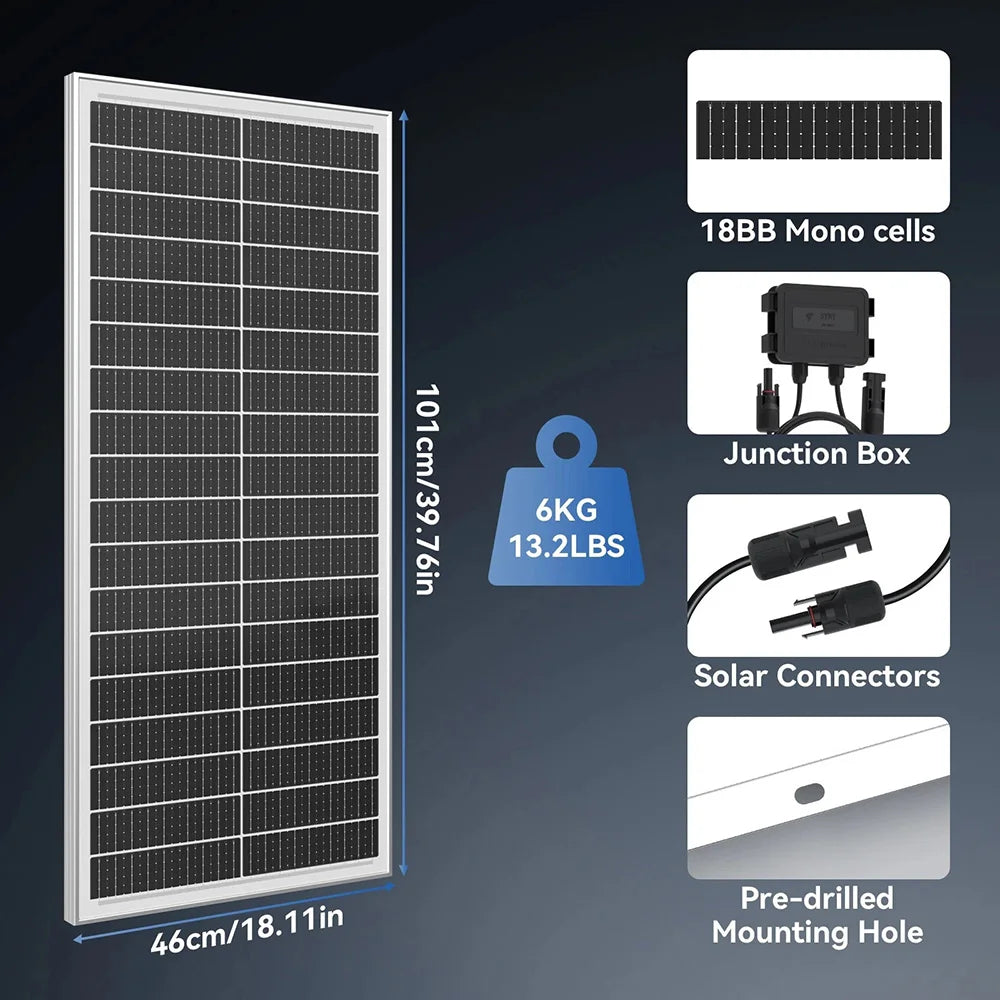

Size: About 1010×460×30mm

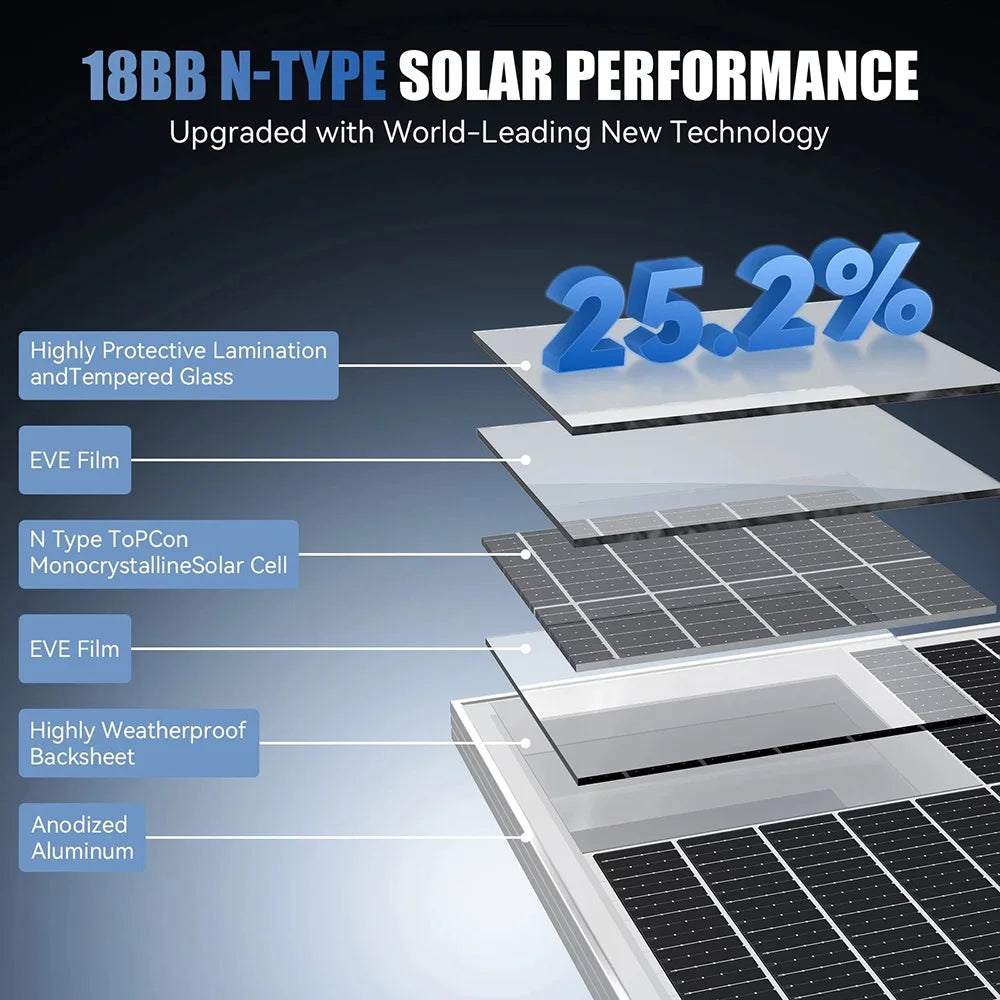

Product Material:

1. Front Panel: High-transmission Tempered Glass

Adopted high light transmittance tempered glass. It effectively captures sunlight and improves photoelectric conversion efficiency. Hardened surface is scratch-resistant, impact-proof, and can withstand harsh outdoor environments.

2. Aluminum Alloy Frame

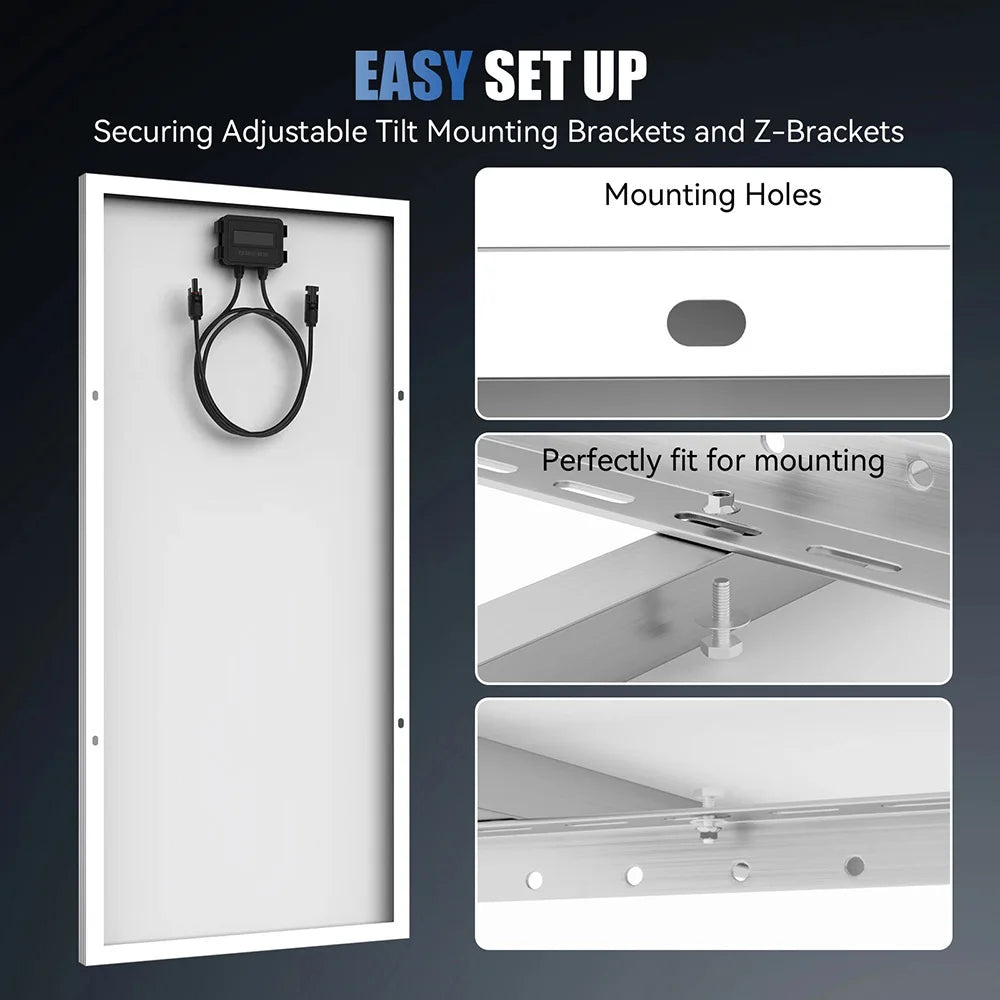

Thickened aerospace-grade aluminum alloy frame features high hardness and good toughness. It reinforces the overall structure, prevents bending and deformation, and provides excellent wind and snow resistance. Easy for installation and fixing.

3. Encapsulation Material

High-quality EVA adhesive film fully encapsulates battery cells. It has great adhesion, anti-aging performance and UV resistance. Avoids internal aging, delamination and water penetration under long-term outdoor use.

4. Multi-layer Backsheet

Durable composite backsheet isolates heat, moisture and dust. It protects internal circuits and cells, reduces power attenuation, and ensures stable output for years.

5. Overall Sealing Process

Fully sealed craft creates an all-round protective barrier. Excellent waterproof, dustproof and weatherproof performance, suitable for home, outdoor, RV and electric vehicle charging scenarios.

Product Features:

1. High aesthetic value: Minimalist white frame design, perfectly integrating RV and courtyard styles;

2. High quality: N-type Solar Cells, Fine Line Printing, effectively utilizing every inch of sunlight;

3. High conversion rate: The Mass Production Efficiency Has Reached 25.2%;

4. High output: 25 Years commitment to maintain 84.5% output;
